Description

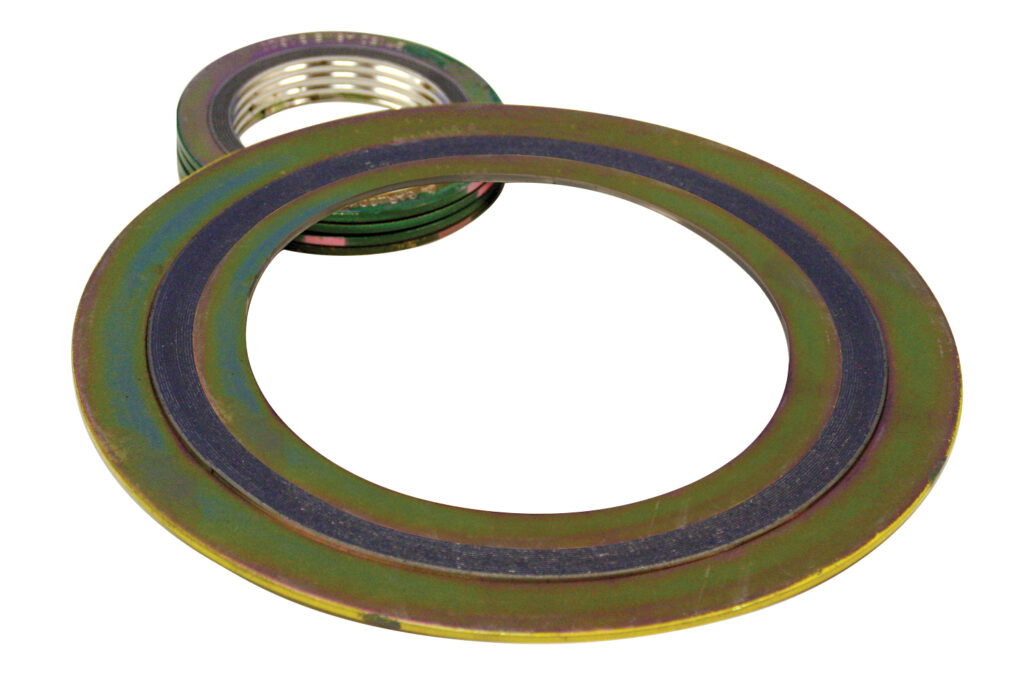

Designed for elevated vacuum pressures and temperatures, this gasket is made as the WR style for which an internal metal ring has been added. This ring fills the space between the flanges, avoiding turbulence in the flow of the fluid or as a protection against corrosion or erosion. It is also used as a compression limit when the seating stress is greater than 30 000 psi (210 Mpa).
Also, gaskets with PTFE filler have a tendency to buckle inward thus the use of an inner ring is recommended.
Applications
The WR type gaskets are suitable for applications that have pressure and temperature variations. They are also used to seal in processess where fluid pressures vary.
Specifications
| Filler material Mica/Graphite (Pink) Maximum temperature | 232°C (450°F) |
| Filler material Graphie flexible (Grey) Maximum temperature | 450°C (840°F) |
| Filler material PTFE (White) Maximum temperature | 260°C (500°F) |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
