3R510AL
Download
Description

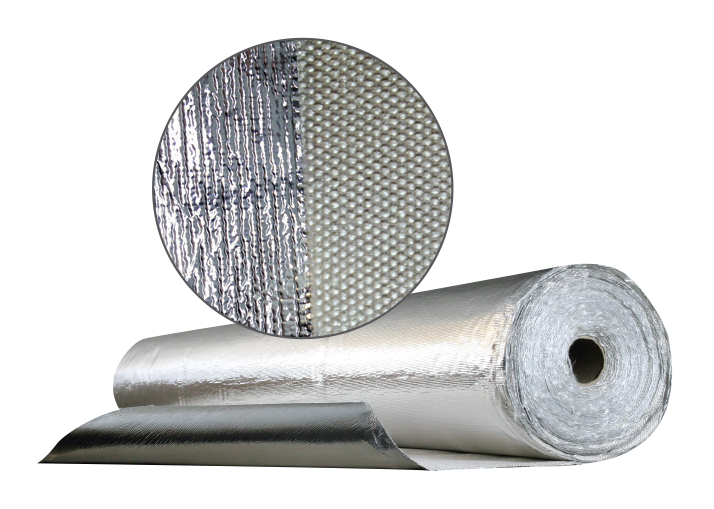

3R510AL is made from texturized fiberglass yarn and is laminated with aluminum foil.
Applications
Typical applications include removable insulation pads, vapor shields and flange shields. Recommended for less severe applications requiring heat reflectivity and molten metal splash resistance. Typical industries include safety garment industry, steel, aluminum, copper and other basic metals groups, construction industry, chemical processing plants, petroleum refineries, automotive industry and maritime. Resist most acids, alkalis and solvents, with the exception of hydrofluoric acids and corrosive environments at elevated temperatures.
Specifications
| Weight | 20 oz/yd² |
| Construction: WARP X FILL | 20 x 14 |
| Thickness | 0.030" |
| Temperature | 595°C (1100°F), Radiant heat: 1650°C (3000°F) |
| Breaking Strength (ASTM-D-5035) | Warp: 600 lbf, Weft: 320 lbf |
| Tear Strength (ASTM-D-5587) | Warp: 75 lbf, Weft: 50 lbf |
| Vertical Flame (ASTM-D-6413) | Char Length: 0 inch |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
